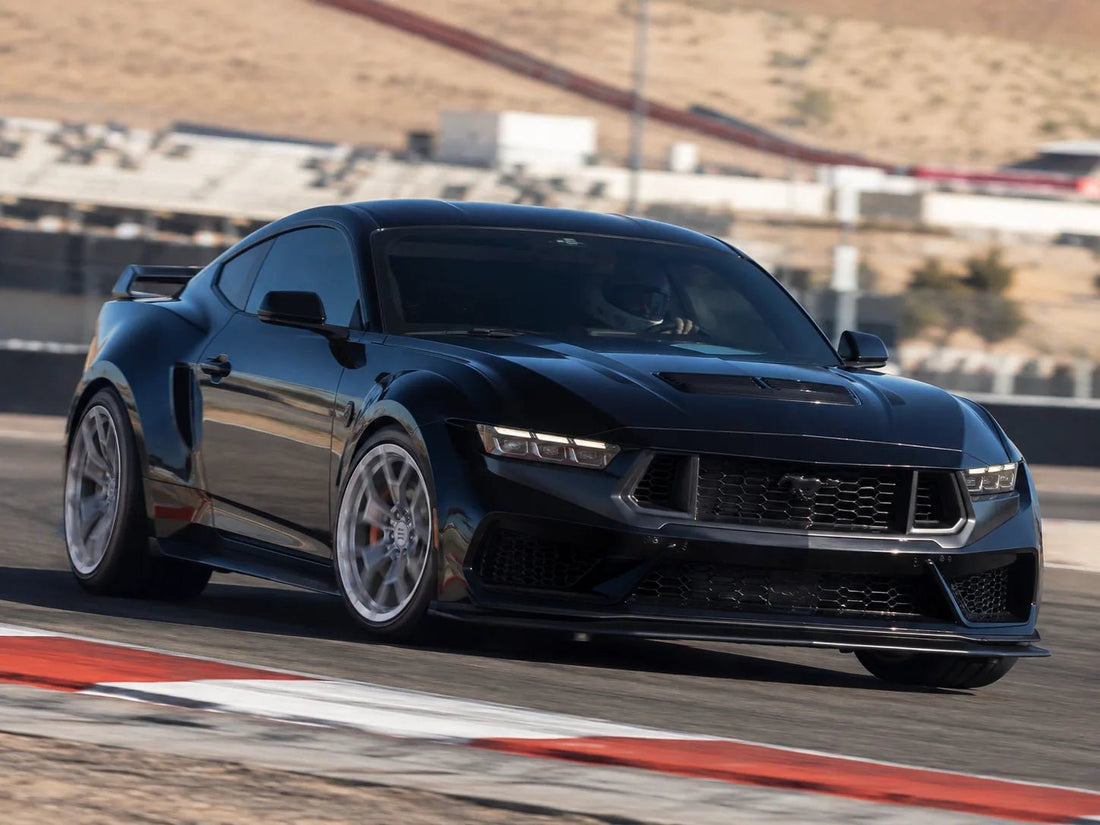

Building the Ultimate Mustang Dark Horse Track-Day Wheel and Tire Setup
S650 Mustang Dark Horse Track Fitment Guide
A track-day wheel package has to clear the Dark Horse brake system, support the chosen tire, stay within the fender and suspension envelope, and handle repeated heat cycles. Wheel size alone settles none of those questions.
A useful Mustang Dark Horse track wheel setup starts with the exact car and event goal. This guide uses current Ford hardware as a baseline, the public retail EKW TRC-1 forged wheel as the wheel example, and fitment checks that apply before you order tires or wheels.
Track setup rule: Choose the tire and axle layout first. Then set wheel width, offset, face profile, and diameter around the tire, brakes, suspension, and body clearance.
Start with the exact Dark Horse configuration
Ford sells the S650 Dark Horse with more than one wheel-and-tire package. For the 2026 model, Ford lists 19x9.5-inch front and 19x10-inch rear wheels with 255/40R19 front and 275/40R19 rear summer tires as the standard layout. The available Dark Horse Handling Package moves to 19x10.5-inch front and 19x11-inch rear wheels with 305/30R19 front and 315/30R19 rear tires.
Those factory packages establish two different starting points. They use different tire widths, sidewall heights, and space around the strut and fender. Record the model year, equipment package, current wheel and tire sizes, ride height, alignment, and any suspension changes before discussing an aftermarket set.
Identify the brake package before choosing diameter
Ford lists six-piston Brembo front calipers with larger rotors on the Dark Horse. The caliper and rotor create a three-dimensional envelope inside the wheel. Diameter affects barrel clearance, while spoke shape and mounting-pad position control the gap between the caliper face and the back of the spokes.
Ask EKW to compare the proposed TRC-1 specification with the exact Dark Horse brake package. A full-scale brake template gives the clearest check. Keep room for balance weights, manufacturing tolerances, heat expansion, and debris. The process in EKW's wheel brake-clearance guide applies to the Mustang as well.
Choose the tire job before the wheel specification
Track tires differ in compound, construction, operating temperature, approved rim-width range, and wet-weather behavior. The right tire for a first open-lapping day may differ from the tire you choose for time trials or frequent hot sessions. Event rules can also limit tire type or treadwear rating.
Select the tire model and size, then read the tire maker's current data sheet. Confirm approved rim widths, load and speed ratings, overall diameter, measured section width, and recommended service. Check availability before locking the wheel order. A hard-to-source rear size can end a weekend after one damaged tire.
Keep overall diameter and electronic systems in the discussion
Changes in tire diameter alter ride height, gearing, speedometer behavior, and the relationship between front and rear wheel speeds. Stability control and ABS watch those wheel speeds. Compare the proposed front and rear rolling circumferences with the factory package and follow Ford and tire-manufacturer limits.
A wider tire also changes the clearance problem. Section width varies by tire model and measuring rim. Use the manufacturer's measurements instead of assuming every 305 tire occupies the same space.
Square or staggered for a Dark Horse track day?
A staggered layout keeps a wider rear tire and follows the factory Dark Horse approach. It can support rear traction and preserve the front-to-rear balance that Ford chose for the package. The tradeoff includes fewer rotation options and separate front and rear spares.
A square layout uses the same wheel and tire size at both axles. It can support front-to-rear rotation, shared spares, and a broader front contact patch. The front axle creates the constraint on many square S650 builds. A wide front package must clear the strut, brake hose, inner liner, fender, and bumper attachment through steering and suspension travel.
Wheel size labels do not guarantee rotation. A setup can use equal tire widths with different offsets or face profiles at each axle, which may stop a true front-to-rear swap. Ask EKW whether the proposed square package uses four interchangeable wheels and whether any spacer or hardware changes would follow the wheel during rotation.
Why the EKW TRC-1 suits this fitment conversation
The current public TRC-1 uses 6061-T6 forged aluminum monoblock construction. EKW describes a slim split-spoke face with open brake visibility and a clean outer lip. The open windows make it easier to inspect the rotor, caliper, pads, and wheel hardware between sessions. They do not prove brake clearance.
EKW lists diameters from 17 through 22 inches, with buildable widths from 17x8 through 17x11 and from 18x8 through 22x12. The product builder supports custom width, offset, and bolt pattern, plus square or staggered layouts where the selected vehicle supports them. These catalog ranges describe what EKW can configure across vehicles. The Dark Horse still needs a car-specific check.
The public Mustang Dark Horse forged-wheel guide shows one TRC-1 build at 19x10 ET36 in front and 19x11 ET50 in the rear. Treat that gallery entry as a documented example. Tire choice, brakes, alignment, suspension, and intended track use can require a different specification.
Set width and offset as one geometry problem
Wheel width changes both inner and outer position. Offset determines where that width sits relative to the hub. A lower positive offset moves the wheel outward. A wider wheel at the same offset moves both edges. Calculate both changes against the current wheel rather than judging fitment from offset alone.
The front needs clearance at full steering lock and through suspension compression. The rear needs room at the inner suspension, liner, fender, and bumper area under load. Track use adds tire growth, sidewall deflection, rubber pickup, and curb compression to the check. Use EKW's wheel offset guide to compare inner and outer movement, then inspect the car with the proposed tire dimensions.
Treat spacers as engineered hardware
A spacer can move the wheel away from the strut or caliper face. It also moves the tire toward the fender and changes hub engagement and fastener requirements. Use one when EKW, the spacer maker, and the installer approve the complete system. A custom wheel offset can address wheel position during the design stage.
Three track-wheel paths to discuss with EKW
Use these paths as planning briefs. They are prompts for measurement and verification, not universal Dark Horse fitments.
| Goal | Starting direction | Checks that decide the build |
|---|---|---|
| Street plus first track days | Preserve a staggered layout near the car's current diameter and tire relationship. | Brake template, wet grip, tire availability, sidewall, ride height, and fender room. |
| Handling Package direction | Use Ford's 19x10.5 front and 19x11 rear wheel widths plus 305/30R19 and 315/30R19 tires as a comparison point. | Exact offsets, tire model, camber, strut clearance, outer clearance, and brake face profile. |
| Rotation-focused square package | Choose one tire size and one wheel specification that the front axle can support. | Four-wheel interchangeability, front strut room, steering clearance, rear position, and wheel-speed compatibility. |
Prepare the package for repeated track sessions
Mount and balance the tires through a shop that handles forged wheels and track tires. Confirm valves, tire-pressure sensors, hub support, fasteners, and balance-weight placement. Check that weights cannot contact the caliper. Use Ford, EKW, tire-maker, and hardware-maker procedures for torque and service.
Set cold pressure from the vehicle and tire guidance, then record pressure as the tire heats. Track surface, ambient temperature, pace, and session length all change the result. Use tread readings, shoulder wear, and handling notes to guide the next adjustment. Avoid copying a pressure from another car without matching the tire, load, and conditions.
- Before the event: inspect wheels and tires, confirm tread and pressure, check fasteners, and verify that no liner or suspension part shows contact.
- After the first session: let the hardware reach the service condition required by its maker, check pressure, inspect for witness marks, and examine each wheel face and barrel.
- Between events: clean the barrel, inspect for impact damage, track tire heat cycles, and record alignment and pressure changes.
The broader S650 Mustang forged-wheel guide provides current EKW model links and installed examples. Use it to compare the TRC-1 with other public wheel families before you lock the design.
FAQ: Mustang Dark Horse track wheel setup
What wheel diameter works best for a Mustang Dark Horse track day?
Ford uses 19-inch wheels on the standard Dark Horse and Handling Package, which makes 19 inches a strong comparison point. The final diameter must clear the exact brakes, support the chosen tire, and fit the car's suspension and body envelope.
Can I run an 18-inch EKW TRC-1 on a Dark Horse?
The public TRC-1 range includes 18-inch configurations, but that range does not confirm Dark Horse brake clearance. EKW needs the exact brake package and proposed wheel profile before approving an 18-inch build.
Is a square setup better than staggered for track use?
A square package can support tire rotation and shared spares. A staggered package preserves a wider rear tire and follows Ford's factory layout. Driver goals, front clearance, tire choice, and chassis balance determine the better path for a given car.
Will the TRC-1 clear Dark Horse Brembo brakes?
Clearance depends on diameter, barrel contour, width, offset, mounting-pad position, face profile, and the exact brake system. Ask EKW to verify the proposed specification with a brake template or equivalent dimensional data.
How much lap time will forged wheels save?
No universal lap-time number applies. Tire grip, driver pace, alignment, track conditions, wheel-and-tire mass, and chassis setup all affect lap time. Build the package for fitment, repeatable tire behavior, service access, and durability instead of an unsupported stopwatch claim.
Build your Dark Horse track package from measured data
The ultimate setup is the one that matches your Dark Horse, tire, event, and service plan. Start with the package on the car, choose the tire job, decide whether rotation matters, and verify brake and body clearance before approving width or offset.
Use the EKW fitment guides and wheel visualizer to narrow the direction. Then browse the public EKW forged wheel catalog or request fitment help. Send the model year, Dark Horse package, brake details, suspension, current wheel and tire sizes, alignment, intended tire, and track-use goals so EKW can review the TRC-1 as a complete system.
