Concave Wheels Explained: Width, Offset, Brake Clearance, and Visual Depth
Concave Wheel Fitment Guide
Concavity is the distance and shape you see between a wheel's outer face and its center. Wheel width and offset influence that depth, but brake clearance and spoke architecture decide how much of it the finished wheel can use.
This guide explains concave wheels in practical terms. It uses a modern five-lug Porsche 911 as the vehicle context and the current public retail EKW SVL-1 forged wheel to show why visual depth must come from a verified fitment, not a single offset number.
The useful definition: Concavity describes the wheel-face profile. The safe amount depends on the complete package: width, offset, mounting pad, spoke shape, barrel, brakes, hub, tire, suspension, and body clearance.
What makes a wheel concave?
Look at a wheel from an angle. If the spokes begin near the outer rim and travel inward toward the hub, the face has a concave profile. A shallow face keeps the hub area close to the outer spoke plane. A deeper face places the center farther inward and gives the spokes a stronger three-dimensional sweep.
Concavity differs from lip depth. A wheel can have a deep outer lip with a flat face, a concave face with little visible lip, or some of both. The SVL-1 uses a broad five-spoke layout with sculpted channels and a center that drops behind the outer spoke shoulders. Its visual depth comes through the spoke face rather than a separate stepped lip.
Width and offset set the available space
Wheel width measures the distance between the tire bead seats. A wider wheel creates a larger barrel package, but it does not guarantee a deeper face. The designer still has to place the mounting pad and spokes where they clear the hub and brakes.
Offset measures the hub mounting surface relative to the wheel centerline. More positive offset moves the wheel inward relative to the hub. Less positive offset moves it outward. The calculations in EKW's wheel offset guide show the resulting inner and outer position changes.
A practical width-and-offset example
Consider a hypothetical move from a 9.0-inch ET50 wheel to a 10.0-inch ET45 wheel. One inch adds 25.4 millimeters of width, split into 12.7 millimeters on each side before the offset change. Reducing positive offset by 5 millimeters then moves the new wheel outward.
The inner edge sits about 7.7 millimeters farther inward: 12.7 minus 5. The outer edge gains about 17.7 millimeters of poke: 12.7 plus 5. That space may support a different face profile, but the numbers do not prove fender, tire, suspension, or brake clearance. They only locate the new wheel edges relative to the old ones.
Two wheels with the same width and offset can still show different depth. One design may use a tall mounting pad to clear a large caliper. Another may arch its spokes over the brake and drop toward the hub after the caliper envelope. Concavity labels such as mild, medium, and deep have no universal industry measurement, so compare drawings or side-profile images from the same wheel family.
Brake clearance can overrule the deepest face
A wheel must clear the brakes in two directions. Radial clearance covers the gap between the rotor or caliper and the wheel barrel. Axial clearance covers the gap between the caliper face and the back of the spokes. A larger diameter can help radial clearance while leaving an axial conflict untouched.
A deep center can move the spoke backs toward the caliper. The wheel designer may need more spoke arch, a taller mounting pad, or a different face profile to preserve the required gap. Those changes can reduce the depth you see from outside. EKW's brake clearance guide explains why a diameter claim or front-view photo cannot approve fitment.
Ask for a brake template or equivalent dimensions for the exact car. Check the rotor, caliper body, bridge, fasteners, balance weights, valve hardware, and manufacturing tolerances. A wheel that clears one trim may contact the brakes on another trim from the same model line.
Porsche 911 fitment makes the rear depth tempting
A modern Porsche 911 has strong rear visual mass, and many versions use a wider rear wheel-and-tire package than the front. That layout can make a deeper rear face look natural. It can also create different front and rear spoke profiles within one wheel design.
The model name alone does not define the hardware. Current 911 variants differ in body width, drive system, wheel diameter, brake package, hub type, suspension, and tire specification. Some use five-lug hubs; others use center-lock wheels. Do not treat the five-lug SVL-1 shown here as a fitment promise for a center-lock car.
Start with the exact model year, trim, VIN when requested, factory wheel markings, brake option, tire sizes, ride height, alignment, and any spacers. Measure inner suspension clearance and outer fender room at both axles. EKW can then review whether the front and rear need separate widths, offsets, or face profiles.
Three sensible 911 design directions
- Matched street face: Keep the front and rear visual depth close for a uniform appearance, even when the rear wheel is wider.
- Rear-depth emphasis: Use the available rear width and clearance for a deeper face while keeping the front profile compatible with steering and brakes.
- Track-service priority: Put tire availability, brake access, weight targets, rotation strategy, and inspection ahead of maximum visual depth.
Each direction still needs a tire approved for the selected rim width, a verified load specification, correct fasteners and hub support, and clearance through steering and suspension movement.

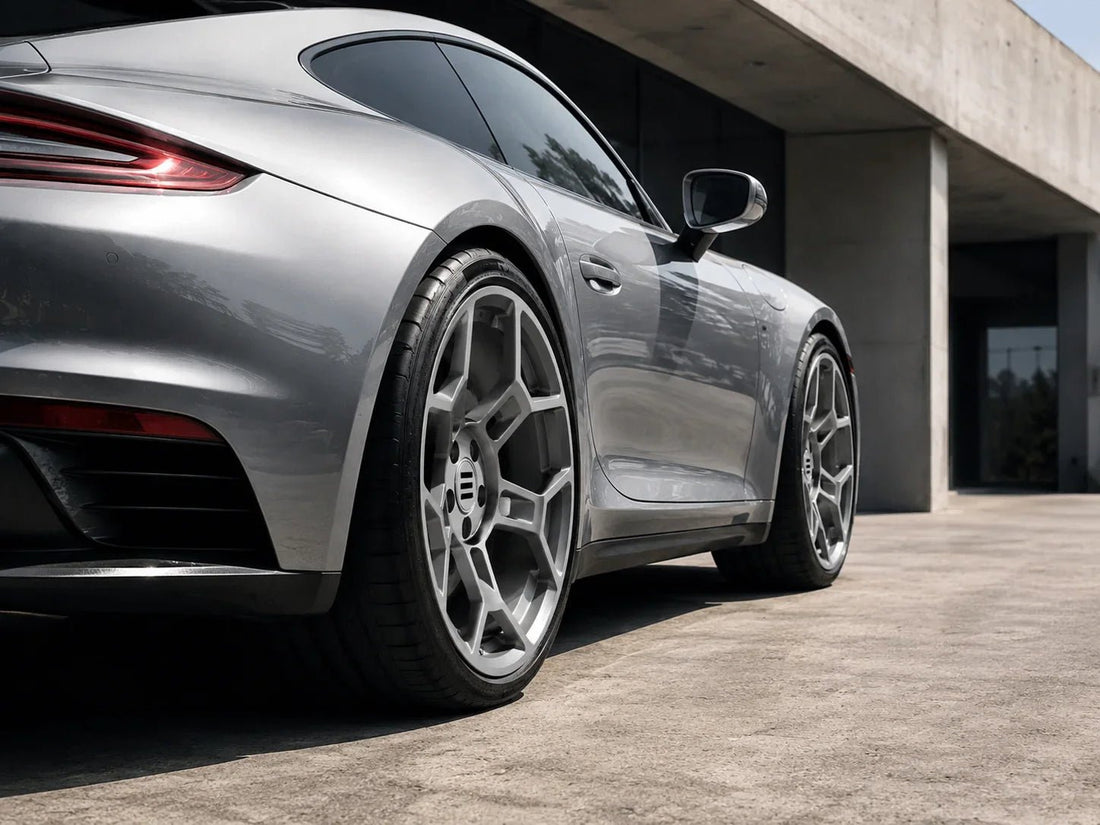

How the EKW SVL-1 approaches visual depth
The current public retail SVL-1 uses 6061-T6 forged aluminum monoblock construction. Its five broad bifurcated spoke groups use sculpted channels and small outer slots to create shadow and structure across the face. The design reads as concave without relying on a separate deep lip.
EKW lists 17 through 22-inch diameters for the SVL-1. The current buildable range spans 17x8 through 17x11, then 18x8 through 22x12. Silver, Bronze, and Black are the standard finish families. Those ranges cover the product family across supported vehicles. They do not mean every width, offset, face profile, or diameter fits every 911.
Use the EKW fitment guides to establish a direction, then have EKW verify the finished drawing against the exact vehicle. The product builder can configure width, offset, bolt pattern, and square or staggered layouts where the selected vehicle supports them.
What deeper concavity changes
A deeper face changes how light crosses the spokes, how large the center appears, and how the wheel fills the fender from a three-quarter view. Finish affects the result. Silver reveals channels and edges, Bronze adds warm contrast, and Black compresses some of the visible detail in low light.
Concavity itself does not prove lower weight, greater strength, better brake cooling, more grip, or faster lap times. Those outcomes depend on the full wheel design, material distribution, tire, dimensions, vehicle, and testing. Treat depth as one design result inside a fitment that already meets the engineering requirements.
What to send before ordering concave wheels
- Vehicle identity: model year, make, model, trim, VIN when requested, drive system, hub type, and brake option.
- Current package: wheel diameter, width, offset, tire size, spacers, fasteners, ride height, and alignment.
- Measured clearance: inner suspension gap, outer fender room, brake template, steering sweep, and suspension travel.
- Target package: exact tire, desired stance, square or staggered layout, finish, and how you use the car.
- Verification request: load capacity, center bore, bolt or center-lock compatibility, brake clearance, TPMS, face profile, and installation hardware.
FAQ: concave wheels explained
Does a lower offset always create a deeper concave wheel?
No. Lower offset can change the space available for the face, but spoke design, mounting-pad height, brake clearance, barrel shape, width, and diameter still control the finished profile.
Can two wheels with the same width and offset have different concavity?
Yes. The spoke path and mounting pad can differ between designs or face profiles. One wheel may arch over a large caliper, while another drops toward the center sooner.
Can a deep concave wheel clear large brakes?
It can when the barrel, mounting pad, and spoke backs clear the exact brake envelope. Use a brake template or dimensional drawing. A wheel diameter or marketing photo cannot confirm axial spoke clearance.
Should front and rear wheels have the same concavity?
They can, but a staggered car may need different widths, offsets, or face profiles. Decide whether matching depth or deeper rear emphasis matters, then let clearance and tire support set the final specification.
Will the EKW SVL-1 fit every Porsche 911?
No universal fitment applies. Porsche 911 variants use different brakes, body widths, hub types, wheels, and tires. EKW must review the exact year, trim, hardware, and target package before approving an SVL-1 specification.
How can I preview concavity before ordering?
Use angled product photos, installed examples, and the approved face drawing for the proposed width and offset. A visualizer can help with overall style, but EKW should confirm the actual face profile and fitment.
Choose depth after the fitment works
The best concave wheel is the deepest face your complete specification can support without trading away brake, suspension, tire, hub, or body clearance. Width and offset start the geometry. The exact vehicle and wheel drawing finish it.
Compare the public EKW SVL-1 collection with the broader EKW forged wheel catalog. Use the wheel visualizer to explore the look, then send EKW your fitment details for a car-specific review before ordering.
