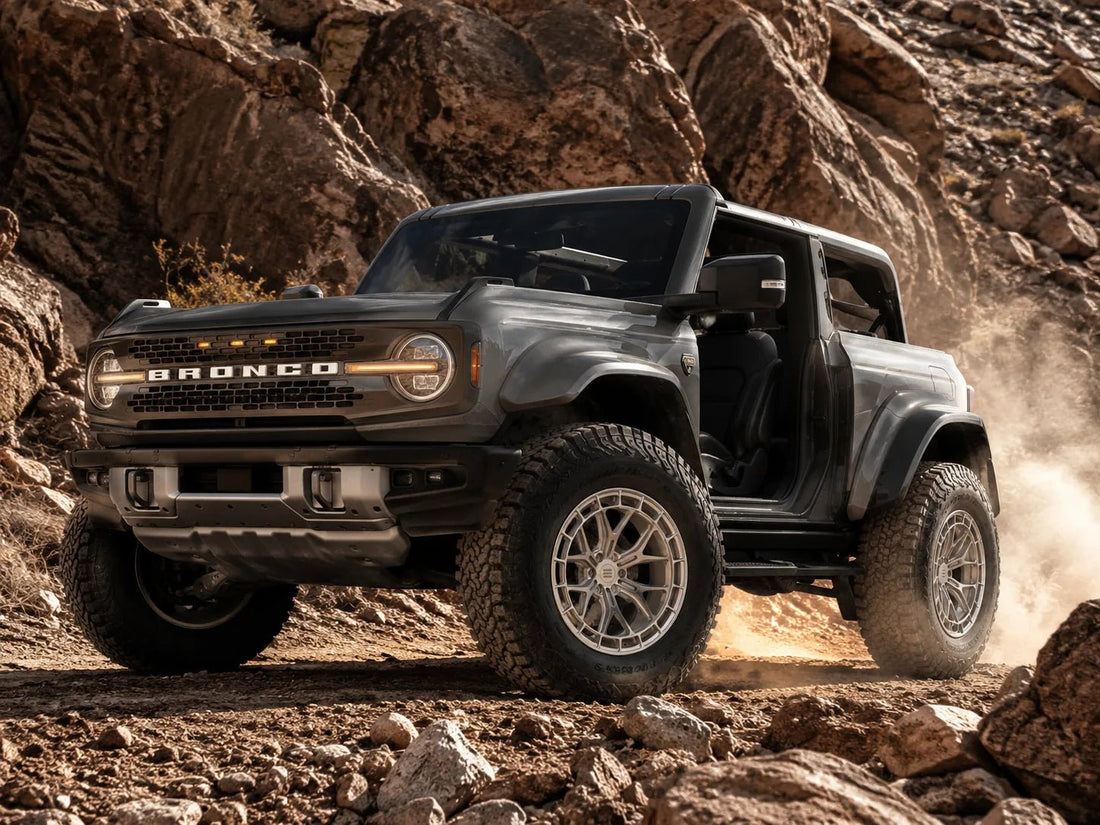

Bronco Raptor Wheel Fitment: Strength, Tire Sidewall, and Off-Road Stance
Bronco Raptor Off-Road Fitment Guide
Bronco Raptor wheel fitment has to support a heavy, fast off-road vehicle while keeping the tire clear through steering, compression, and articulation. The stance comes after those requirements.
A useful setup starts with the tire, the exact Bronco Raptor configuration, and the terrain you plan to drive. This guide uses the current public retail EKW SRX-1 forged wheel as the example and explains the checks that should happen before EKW approves width, offset, and load requirements.
Fitment priority: Preserve the tire's job and the suspension's working space. A wider stance only works when the wheel, tire, brakes, steering, body, spare, and load capacity agree.
Use the factory package as the baseline
Ford's 2026 Bronco specifications pair the Raptor with 17x8.5-inch wheels and 37-inch all-terrain tires. Ford lists the tire as 37x12.5R17 and includes a full-size spare with individual tire-pressure monitoring. Earlier model years and optional packages can differ, so check the tire label, build sheet, and hardware on the vehicle in front of you.
That factory relationship tells you what Ford prioritized: a large tire with substantial sidewall, enough wheel diameter for the brakes, and matching rolling diameter at all five positions. An aftermarket package can change the look and wheel construction, but it still has to account for the same steering, braking, electronic, and spare-tire functions.
Record the current wheel size, tire model and size, cold pressure from the door placard, suspension package, alignment, added armor or cargo, and how you use the truck. Photograph the inner clearances and any existing witness marks. Those details give EKW a useful starting point for the Bronco Raptor forged-wheel guide.
Strength starts with the complete wheel specification
Material and manufacturing method provide context, but they do not replace the load rating for the finished wheel. Vehicle weight, passengers, cargo, accessories, impact loads, tire pressure, and driving speed all affect the demand at each corner. Ask EKW to confirm that the proposed SRX-1 specification meets the Bronco Raptor's axle loads and intended service.
The current SRX-1 uses 6061-T6 forged aluminum monoblock construction. Forging and CNC machining let EKW shape the spoke, hub, and barrel for a specific build. The final diameter, width, offset, center bore, bolt pattern, and face profile still determine whether that wheel is appropriate for one vehicle.
Off-road impacts change the inspection routine
A sharp rock strike or pothole can damage a wheel or tire even when no air escapes. Clean the wheel after a trail day and inspect the outer lip, inner barrel, spokes, hub area, valve, bead seat, and tire sidewall. Check for fresh vibration, pressure loss, steering change, or balance-weight movement. A qualified wheel or tire shop should inspect any suspected damage before the next trip.
Do not treat beadlock-capable factory hardware, a decorative ring, and a true beadlock assembly as interchangeable. The public SRX-1 page does not make a beadlock claim. Use the wheel and tire only within the pressure, mounting, and service instructions supplied for the finished package.
Why the EKW SRX-1 fits the design brief
The public retail SRX-1 has five split-spoke groups, large sculpted windows, chamfered surfaces, ten perimeter pockets, and a six-lug center in the current truck and SUV reference. The open face gives the wheel visual structure without hiding the brake package. It also makes post-trail inspection and cleaning easier.
EKW lists SRX-1 diameters from 17 through 22 inches. The published buildable range is 17x8 through 17x11, then 18x8 through 22x12. Silver, Bronze, and Black appear as the standard finish families. These are catalog capabilities across trucks and SUVs, not a promise that every size clears a Bronco Raptor.
The EKW product builder configures width, offset, and bolt pattern around the selected vehicle. Use the EKW fitment lookup to narrow the direction, then have EKW verify the exact wheel drawing against the truck's brakes, hubs, axle loads, and tire plan.
Tire sidewall is part of the suspension system
The tire sidewall flexes as the tread climbs a rock, crosses a washboard, or lands after a compression. More sidewall can improve compliance and protect the rim from some impacts. It can also create more lateral movement and occupy more space near the control arms, liner, and flare under load.
A larger wheel diameter with the same overall tire diameter shortens the sidewall. That can sharpen steering response and change the stance, but it leaves less tire between the rim and the terrain. A smaller wheel preserves more sidewall, provided it clears the brake package and supports the tire size. The Bronco Raptor's factory 17-inch and 37-inch combination is a useful reference for this tradeoff.
Match wheel width to the exact tire
Tire manufacturers publish an approved rim-width range for each size. That range controls how the casing sits on the wheel. A wheel near one end of the range can change section width, sidewall shape, steering feel, and bead support compared with the measuring rim. Choose the tire model first, then select an SRX-1 width that the tire maker approves.
Use the Bronco's tire label for the road-pressure baseline and follow the tire and wheel makers for off-road service. Vehicle load, speed, temperature, terrain, bead design, and wheel construction affect the safe pressure range. Copying an air-down number from another Bronco ignores those variables.
Check clearance through movement, not at ride height
A parked truck can hide contact that appears at full steering lock, under braking, or with one wheel compressed. Inspect the proposed wheel and tire in three states: straight ahead at normal ride height, full left and right steering lock, and suspension compression or articulation that represents trail use. Repeat the check with realistic cargo.
At the front, check the upper and lower control arms, tie rod, brake hose, liner, flare, bumper corner, and crash-bar area where applicable. At the rear, inspect the liner, flare, suspension links, shock area, and bumper. Leave room for mud, gravel, tire growth, sidewall deflection, and manufacturing tolerances.
Brake clearance has two dimensions. The barrel must clear the rotor and caliper radially, while the back of the spokes must clear the caliper face axially. Balance weights also need space. EKW should compare the final SRX-1 barrel and face profile with the exact Bronco Raptor brake package before machining.
Include the spare in the fitment plan
A fifth wheel matters on a vehicle built for remote trails. Match rolling diameter closely enough for the drivetrain and electronic systems, and confirm that the spare tire clears the carrier, rear camera, third brake light, and tailgate. Added tire mass can also affect the carrier. Follow Ford and component-maker limits for the exact assembly.
Offset controls stance and working clearance
Wheel width determines the total barrel width. Offset places that width relative to the hub. Moving to a lower offset pushes the wheel outward, which can open inner clearance while reducing room at the flare and bumper. A wider wheel changes both inner and outer positions even when the offset number stays the same.
Extra poke can increase debris spray, steering kickback, and leverage on wheel bearings and suspension parts. It can also move the tire into the flare during compression or the bumper area at steering lock. Use the calculations in EKW's wheel offset guide, then validate the result on the Bronco through its full movement.
The public EKW Bronco Raptor gallery documents one square SRX-1 example at 22x9.5 ET-18 in Matte Black. Treat that specification as one completed build, not a universal recommendation. Tire size, suspension, alignment, load, and intended terrain can point to a different wheel.
Choose a build direction before choosing a finish
| Priority | Starting direction | Checks that decide the specification |
|---|---|---|
| Trail protection | Preserve generous sidewall and a practical spare strategy near the factory tire relationship. | Brake barrel, approved tire rim width, load rating, bead service, articulation, and rock-impact exposure. |
| Mixed road and trail | Balance steering response, sidewall height, tire availability, and cleaning access. | Road pressure, wet behavior, full-lock clearance, highway balance, spare diameter, and finish care. |
| Stance-focused street use | Choose the visual wheel diameter and outer position without sacrificing tire support or body clearance. | Offset, scrub-radius change, flare coverage, steering sweep, suspension compression, and realistic terrain limits. |
Send EKW a complete fitment brief
- Identify the truck: model year, factory package, VIN when requested, brake hardware, suspension, and alignment.
- Define the load: passengers, cargo, spare, armor, roof equipment, towing use, and typical trail speed.
- Choose the tire: exact brand, model, size, approved rim-width range, load and speed ratings, and intended pressure guidance.
- Set the stance target: current wheel measurements, desired inner and outer movement, flare coverage, and spacer policy.
- Request verification: load capacity, bolt pattern, center bore, fasteners, brake clearance, TPMS, width, offset, and five-wheel spare strategy.
FAQ: Bronco Raptor wheel fitment
Will a 17-inch EKW SRX-1 fit a Bronco Raptor?
The public SRX-1 range includes 17-inch configurations, but the catalog range does not confirm Bronco Raptor fitment. EKW must verify the exact barrel, spoke profile, width, offset, bolt pattern, center bore, load capacity, and brake package.
Can I reuse the factory 37x12.5R17 tires?
Reuse depends on tire condition, age, approved rim-width range, load and speed ratings, and the final wheel specification. Have the tire shop and EKW review the exact tire before mounting it on a new wheel.
What offset gives a flush Bronco Raptor stance?
No single offset guarantees a flush result. Wheel width, tire section width, suspension, alignment, flare position, steering sweep, and compression all change the inner and outer clearance. Measure the current package and review the target with EKW.
Are forged wheels strong enough for off-road use?
Forged construction can support an efficient strength-to-weight design, but suitability depends on the finished wheel's verified load capacity and specification. Confirm vehicle load, tire, terrain, and service requirements with EKW before ordering.
Should I order four wheels or five?
A matching full-size spare is valuable for remote travel. Confirm rolling diameter, tire direction, TPMS, tailgate carrier capacity, camera and brake-light clearance, and whether the spare wheel specification can rotate to each axle.
How low can I air down an SRX-1 setup?
There is no universal pressure. Vehicle load, speed, terrain, tire construction, rim width, bead design, temperature, and wheel instructions set the safe range. Follow the tire and wheel makers and use an experienced off-road tire shop.
Build the stance from verified measurements
A good Bronco Raptor wheel package keeps the tire supported, the suspension free to move, and the wheel within its load and service requirements. Start with the factory baseline, define the terrain and load, choose the tire, and let those decisions set the SRX-1 diameter, width, and offset.
Browse the public SRX-1 collection, compare the broader EKW forged wheel catalog, and use the wheel visualizer for design direction. Then send EKW your fitment brief so the team can verify the complete wheel-and-tire system before machining.
